Mains chokes ALN 12 ... ALN 150 / ALN 15-SI ... ALN 90-S

The position of the terminal blocks can vary.

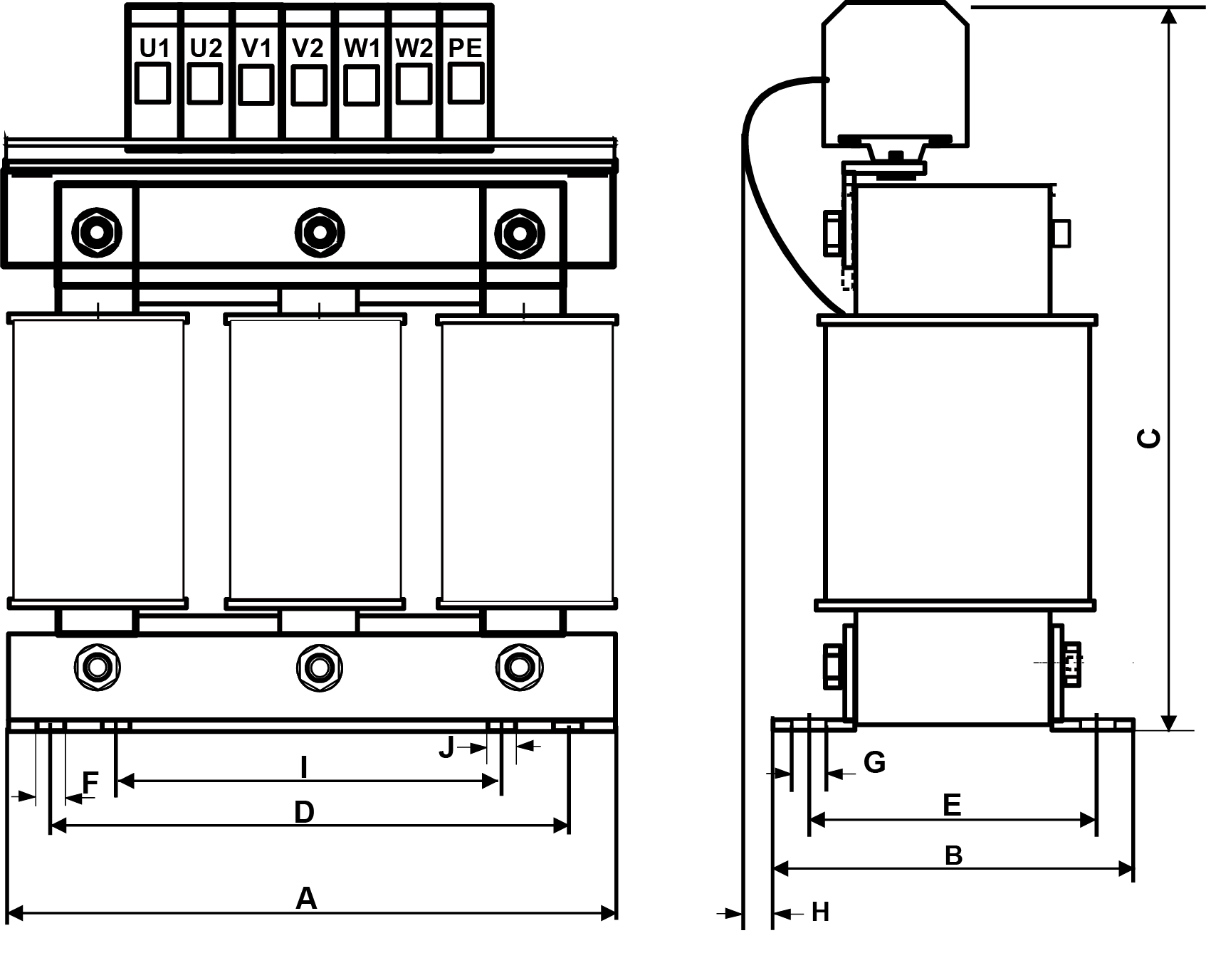

Dimensions / mm:


ALN 12

ALN 17

ALN 36

ALN

36/1000

ALN 63

ALN 85

ALN 125

ALN

150-2,5

A

155 ±2

155 ±2

155 ±2

190 ±2

190 ±2

210 ±2

233 ±2

240 ±2

B

77 ±2

77 ±2

92 ±2

90 ±2

100 ±2

120 ±2

113 ±2

130 ±2

C

137 ±10

175 ±10

≤ 225

220 ±5

≤ 225

240 ±10

286 ±10

310 ±10

D

130 ±1

130 ±1

130 ±1

170 ±1

170 ±1

175 ±1

175 ±1

185 ±1

E

57 ±2

58 ±2

71 ±2

67 ±2

77 ±2

97 ±1

90 ±2

108 ±2

F

8

8

8

8

8

8

7

10

G

12

12

12 +1

12 +1

12 +1

12 +1

13

18

H

0

0

0

0

0

≤ 15

≤ 15

≤ 20

I

-

-

-

-

-

-

-

-

J

-

-

-

-

-

-

-

-

AMK part no.

O911

O742

O726

O727

O728

O729

O730

O731



ALN 15-SI

ALN 15-SI

ALN 45-SI

ALN 60-SI

ALN 60-SI

ALN 30-S

ALN 90-S

A

190 ±1

190 ±2

250 ±2

300 ±2

295 ±1

300 ±2

300 ±2

B

101 ±3

102 ±2

113 ±2

122 ±2

137 ±2

107 ±2

165 ±2

C

215 ±10

215 ±10

270 ±10

335 ±10

340 ±5

243 ±10

335 ±10

D

190 ±1

170 ±1

230 ±1

224 ±1

265 ±1

270 ±1

240 ±1

E

85 ±1

77 ±1

93 ±3

94 ±2

115 ±2

77 ±2

133 ±1

F

*)

8

*)

10

*)

*)

11

G

*)

12

*)

18

*)

*)

17

H

0

0

0

0

0

0

0

I

-

-

-

-

224 ±1

-

-

J

-

-

-

-

*)

-

-

AMK part no.

O968

O829

O889

O790

O942

O893

O770

*)

Siehe 'Detail of mounting hole'.
