CM3 (ITT Cannon) connector

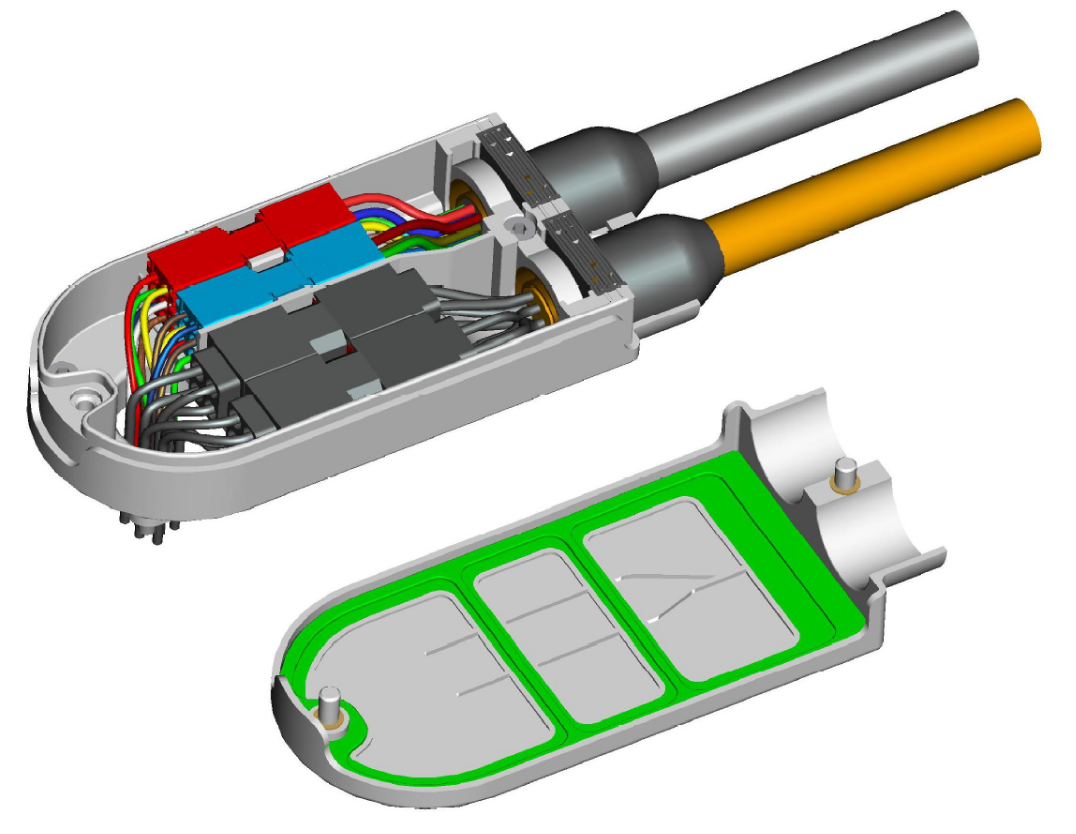

1. Loosen both of the screws (M3 x 10 mm) with a hex screwdriver 2,0 and open the CM3 connector housing.

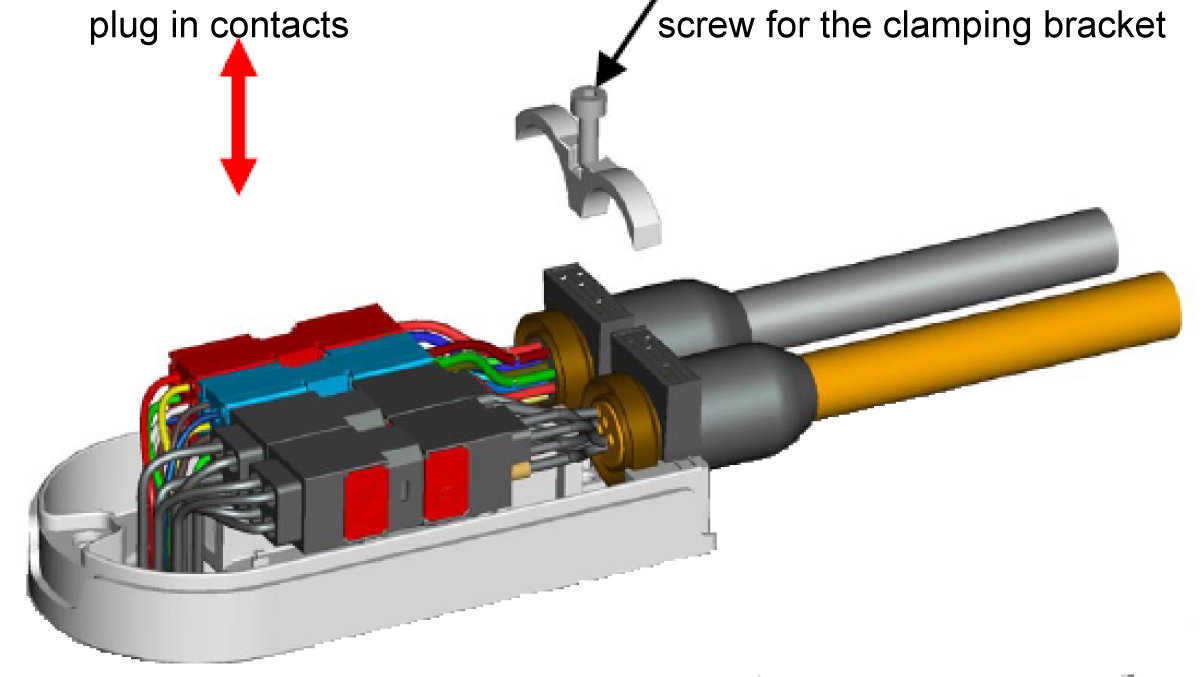

2. Loosen the screw (M2,5 x 10 mm) for the clamping bracket with a hex screwdriver 2,0 and remove the clamping bracket.

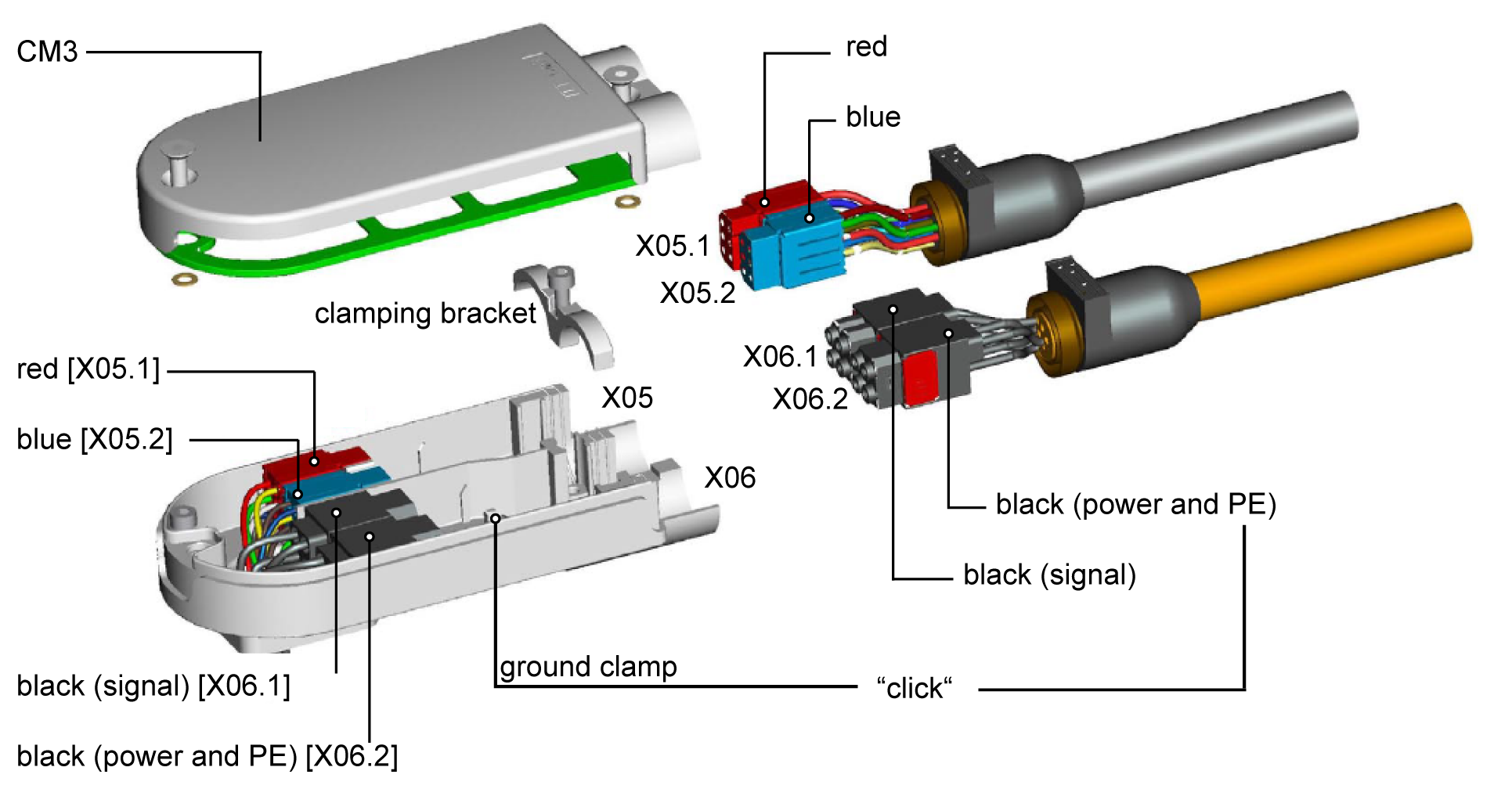

3. Lift the contacts out of the CM3 connector housing.

4. Connect the raised contacts with the respective counter contact of the motor and encoder cable.
5. Insert the connected contacts into the CM3 connector housing.

6. Align the cable and tighten the clamping bracket (tightening torque 0.7 Nm).

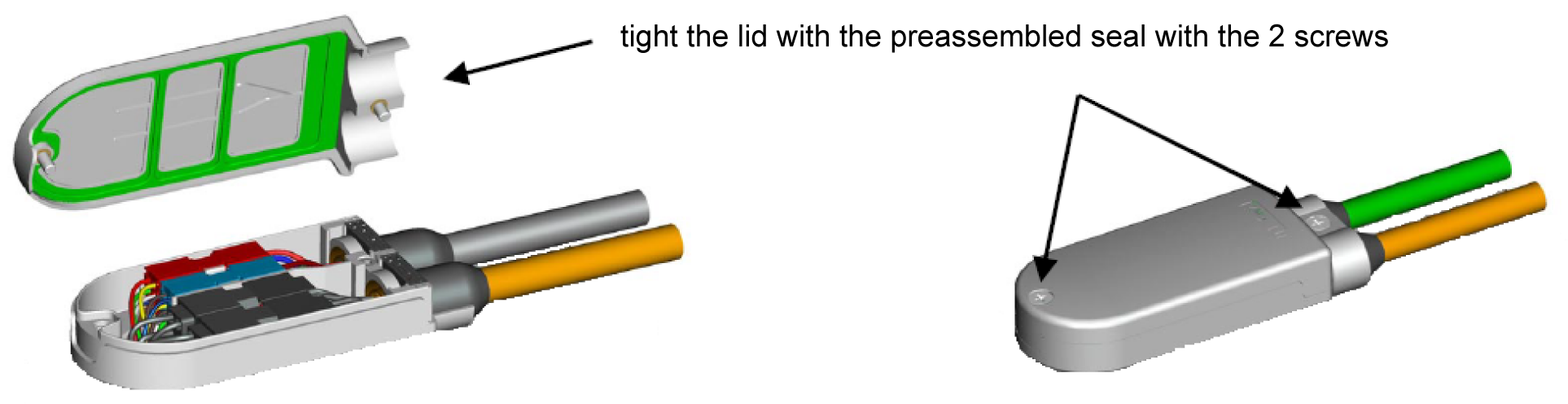

7. Screw the cover on the CM3 connector (tightening torque 1.2 Nm). Ensure that the seal is not damaged.
