Terminal box (iC)

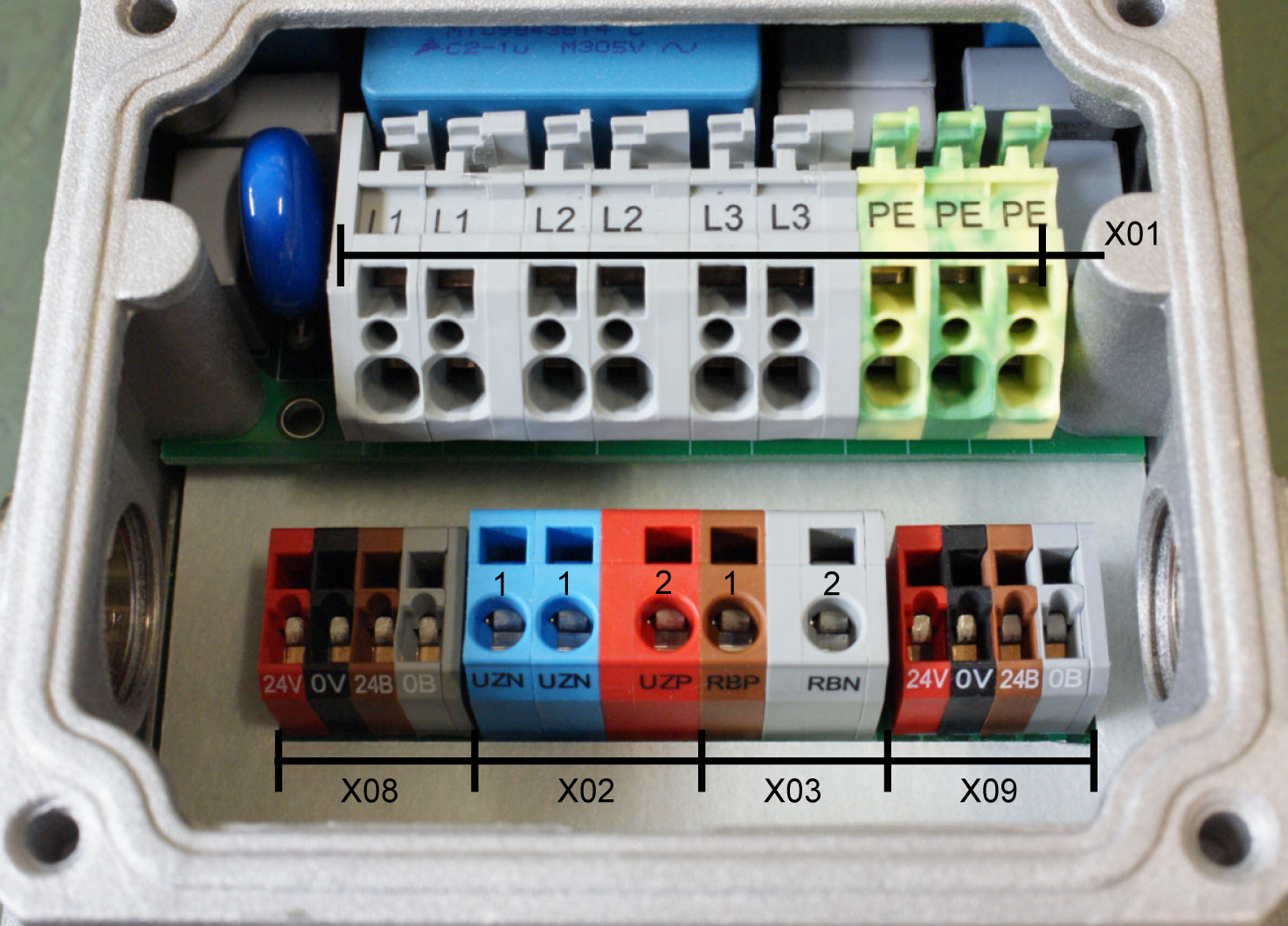

NOTICE
Material Damage!	On the open unit a dry, non-conductive pollution may only occur. The penetrating pollution into the open housing may not affect the functionality of the device (EN 61800-5-1, pollution degree 1). Ensure that no objects fall into the housing when working on the open housing. Foreign objects can cause short-circuits during operation and thereby destroy the device.

NOTICE

Material Damage!

On the open unit a dry, non-conductive pollution may only occur. The penetrating pollution into the open housing may not affect the functionality of the device (EN 61800-5-1, pollution degree 1).

Ensure that no objects fall into the housing when working on the open housing.
Foreign objects can cause short-circuits during operation and thereby destroy the device.

Siehe 'Cable glands'.

Installation note

If you use an EMC-compliant cable gland (Part no. 101005), the cable is installed as follows:

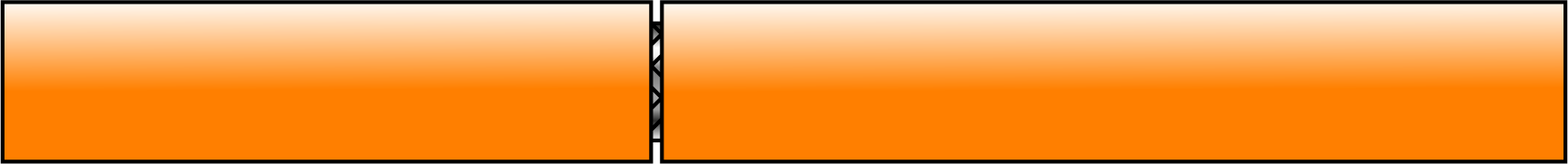

1. Cut the cable sheath around but do not strip

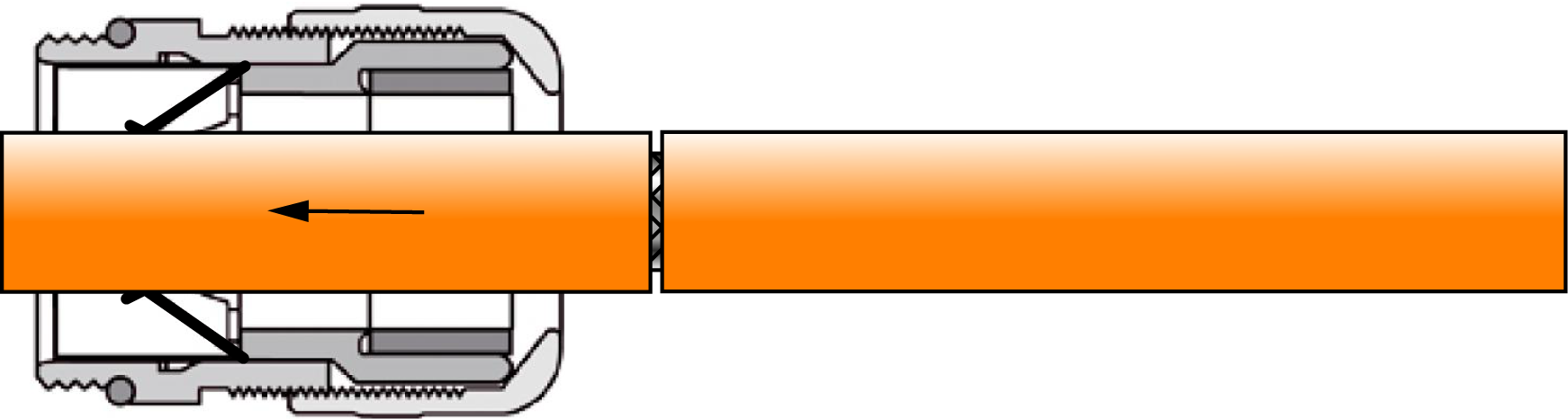

2. Pass the cable through the cable gland

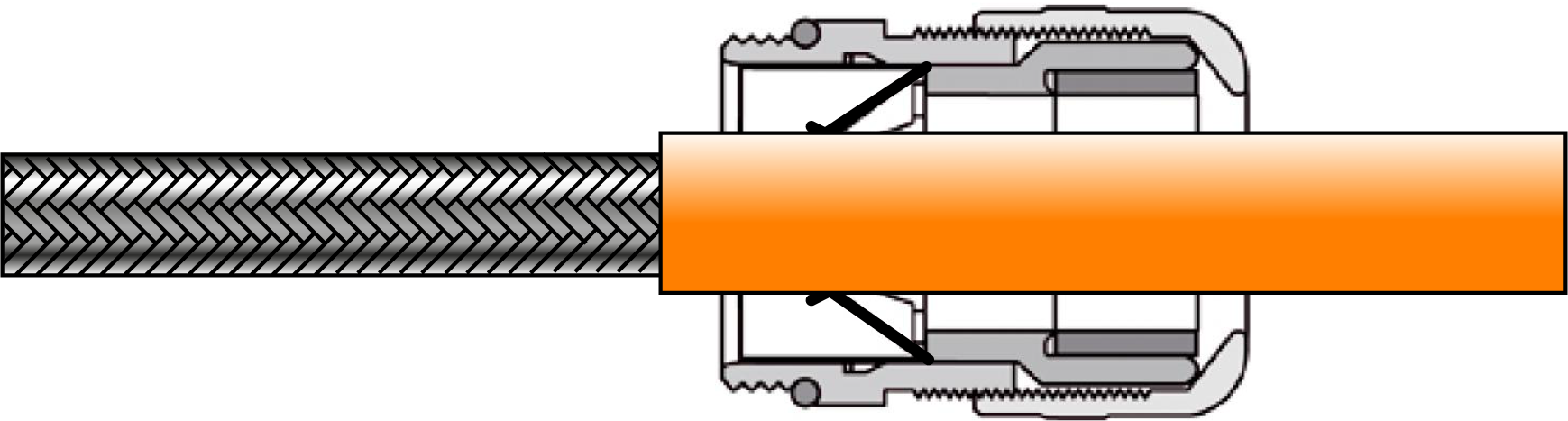

3. Strip the cable sheath

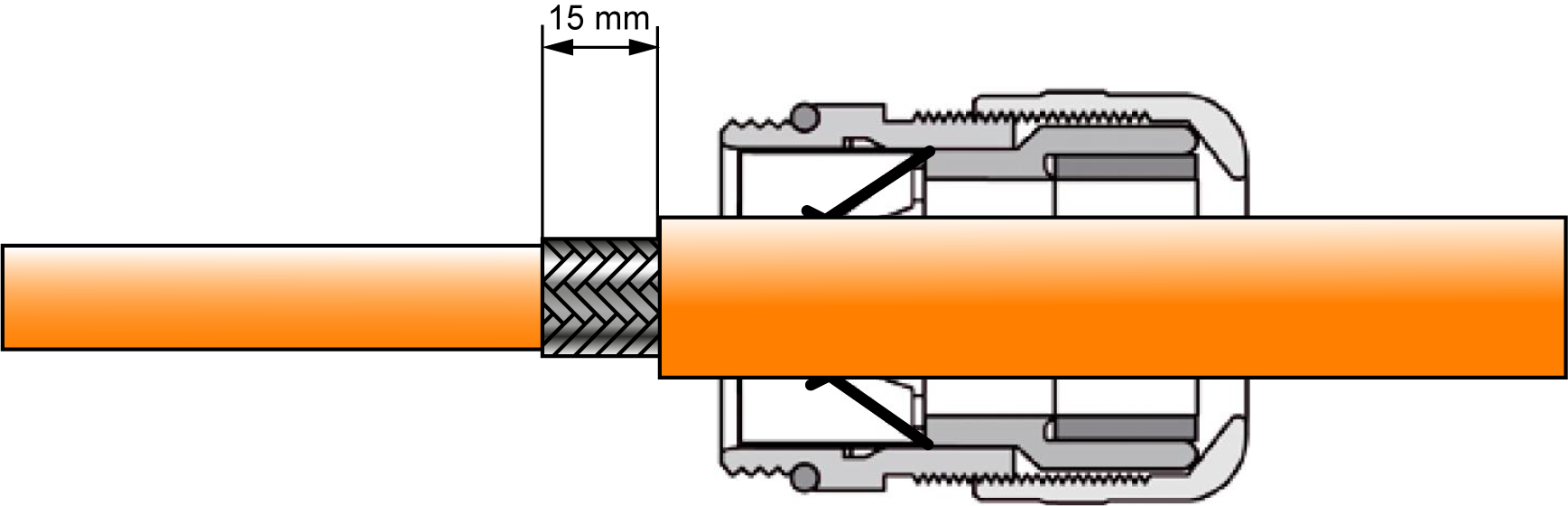

4. Cut the cable shield at about 15 mm

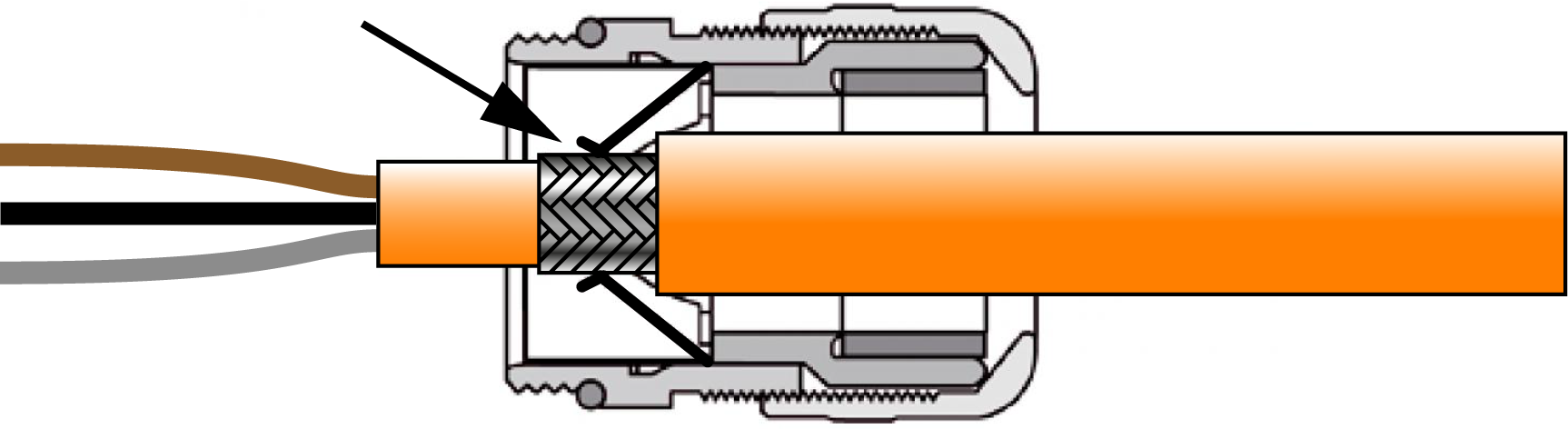

5. Pull the cable back until the shield gets contact to the spring

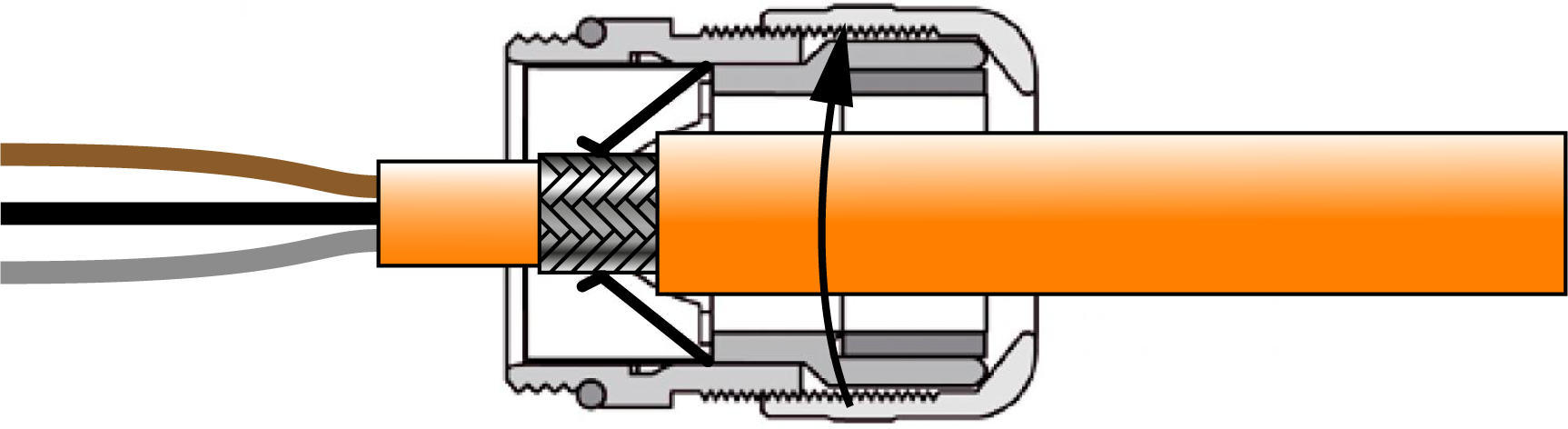

6. Close the cap nut and tighten with 12 Nm
