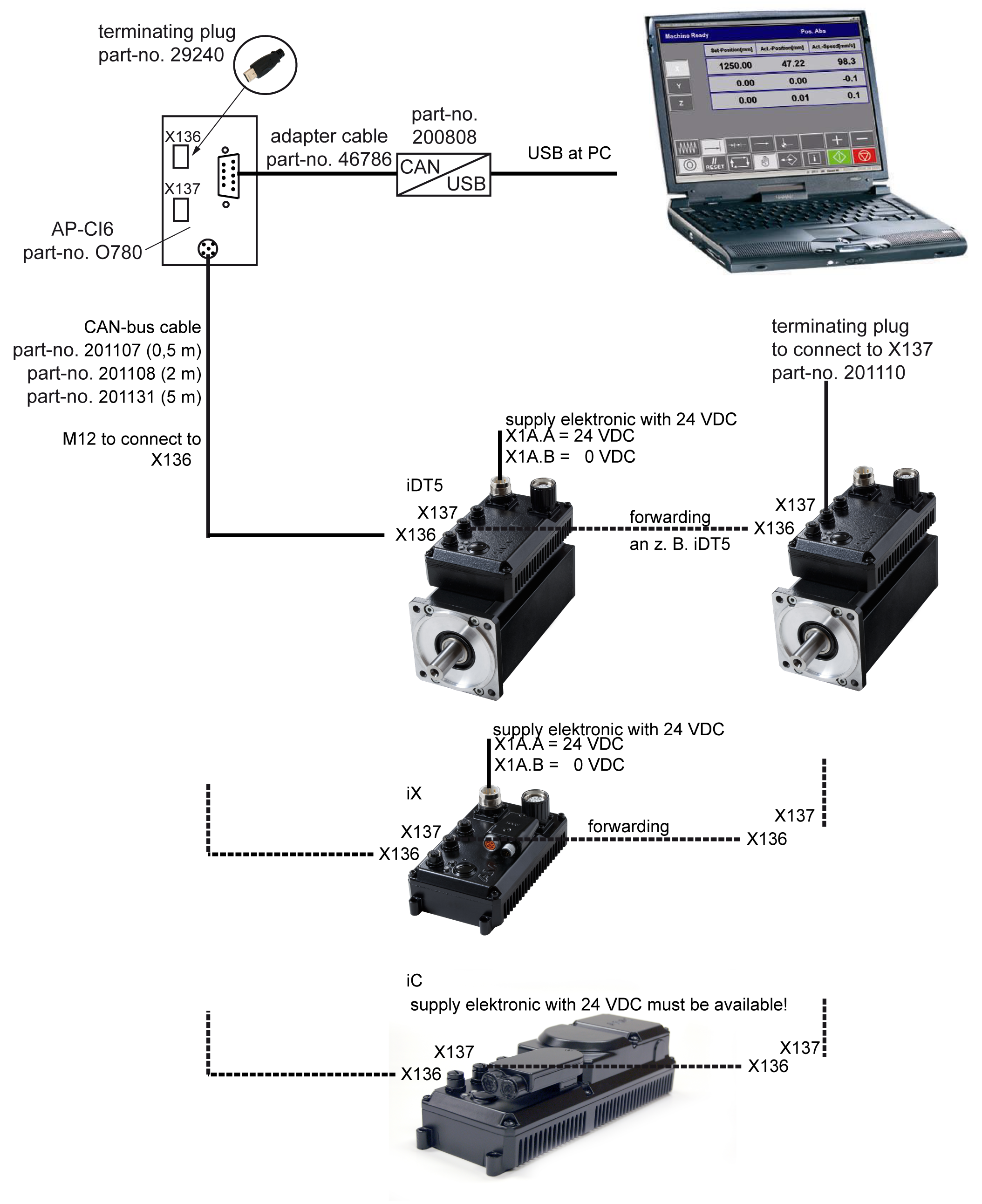

Connection between PC and devices with a CAN bus interface

The shown connection between the PC and CAN bus participant can be established as a point to point connection to individual devices or as a connection to a CAN bus device connection. In the device connection, AIPEX PRO has access to all of the participants connected to the CAN bus. The connection with AIPEX PRO also works when a CAN bus controller is connected in parallel to AIPEX PRO.



Setting in AIPEX PRO:

Menu 'Extras' -> 'Option' -> 'PC communication' - activate the 'CANClient' there, enter the baud rate as in the CAN slave participant, see ID34024 'BUS transmit rate'
