SERCOS III interface

Example:

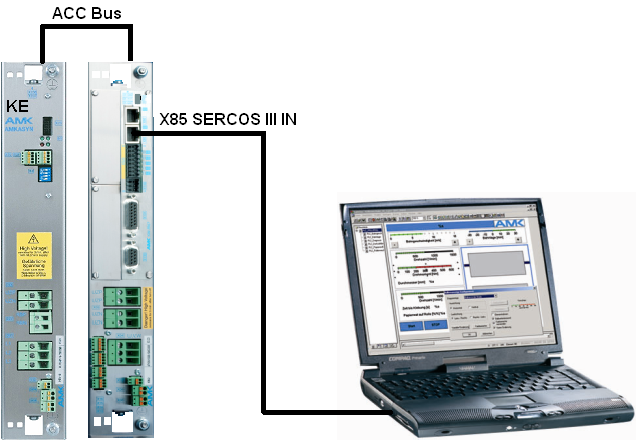

KE with ACC bus and KW with KW-R06 (comparable with KW-R07, KW-R16 and KW-R17).

Access is possible via the SERCOS III connection to all connected modules. You can also access ACC bus slave devices via the ACC bus connection of the controller card.

Cable:

Ethernet Standard RJ45 Twisted Pair Patch cable.

PC adjustment: Enter a fix IP address which is not used by a SERCOS III node.

The SERCOS III node addresses are fixed given to 192.168.0.X.

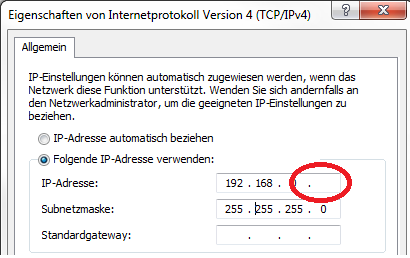

Windows 7

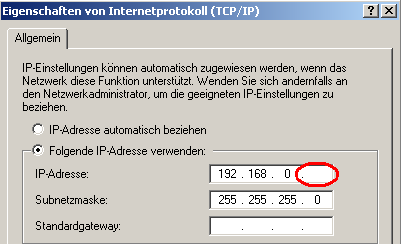

Windows XP
