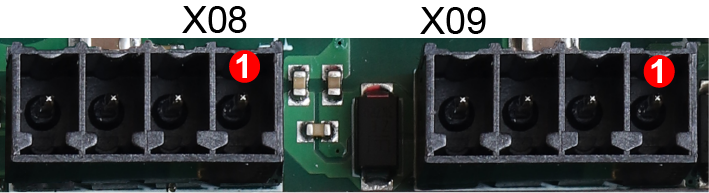

[X09] Transmission supply voltage 24 VDC and STO

Note only for devices with rev.<4.00:

NOTE
Material damage!	Material damage due to overvoltage! An overvoltage at the connections X08 and X09 (24 VDC) is not monitored and damages the device¹⁾. ( Steps to prevent: Comply with the specifications for the electronics supply voltage 24 VDC. (24 VDC ± 15 %, ripple max. 5 %)

NOTE

Material damage!

Material damage due to overvoltage!

An overvoltage at the connections X08 and X09 (24 VDC) is not monitored and damages the device¹⁾. (

Steps to prevent:

Comply with the specifications for the electronics supply voltage 24 VDC.
(24 VDC ± 15 %, ripple max. 5 %)

1)	Devices with Rev. <4.00 do not have STO certification (no TÜV logo on the nameplate) and do not have overvoltage monitoring. An overvoltage > 24 VDC ± 15% at 24V or STO will destroy the device.

Description

Assignment

Connection	Signal	Description
1	24V ¹⁾	Transmission X08 connection 1
2	0V	Transmission X08 connection 2
3	STO ¹⁾	Transmission X08 connection 3
4	STO_GND	Transmission X08 connection 4

1)	Maximum current of the terminal: 10 A Maximum current hybrid cable : 6 A The current of the 24 VDC supply voltage must be limited by the user!

Siehe 'Connection box ihX'.

Technical data

Description

Transmission of the supply voltage 24 VDC

Transmission of the STO and STO_GND signals

Connection design

Terminal (on the device)	connector, 4-poles, 1-row pin strip
Mating plug	4-poles, socket

Electrical data

Siehe 'Electrical data ihX'.

Cable

2 x 1,0 mm² + 2 x 0,5 mm², flexible

cable assembly

Wire end ferrule with plastic sheath

Accessories

Prefabricated cable:

Siehe 'Hybrid cable configured'.

Notes

PELV power supply (Protective Extra Low Voltage): functional extra-low voltage with safe separation

The voltage must also be limited to a maximum of 60 VDC in the event of an error. The 0 VDC potential of the power pack must be grounded at the central PE.
