Product view – inverter
With respect to the illustrations shown in the documentation, please pay attention to the label 'Cooling circuit connection side'.
|
I(1/2) |
- |

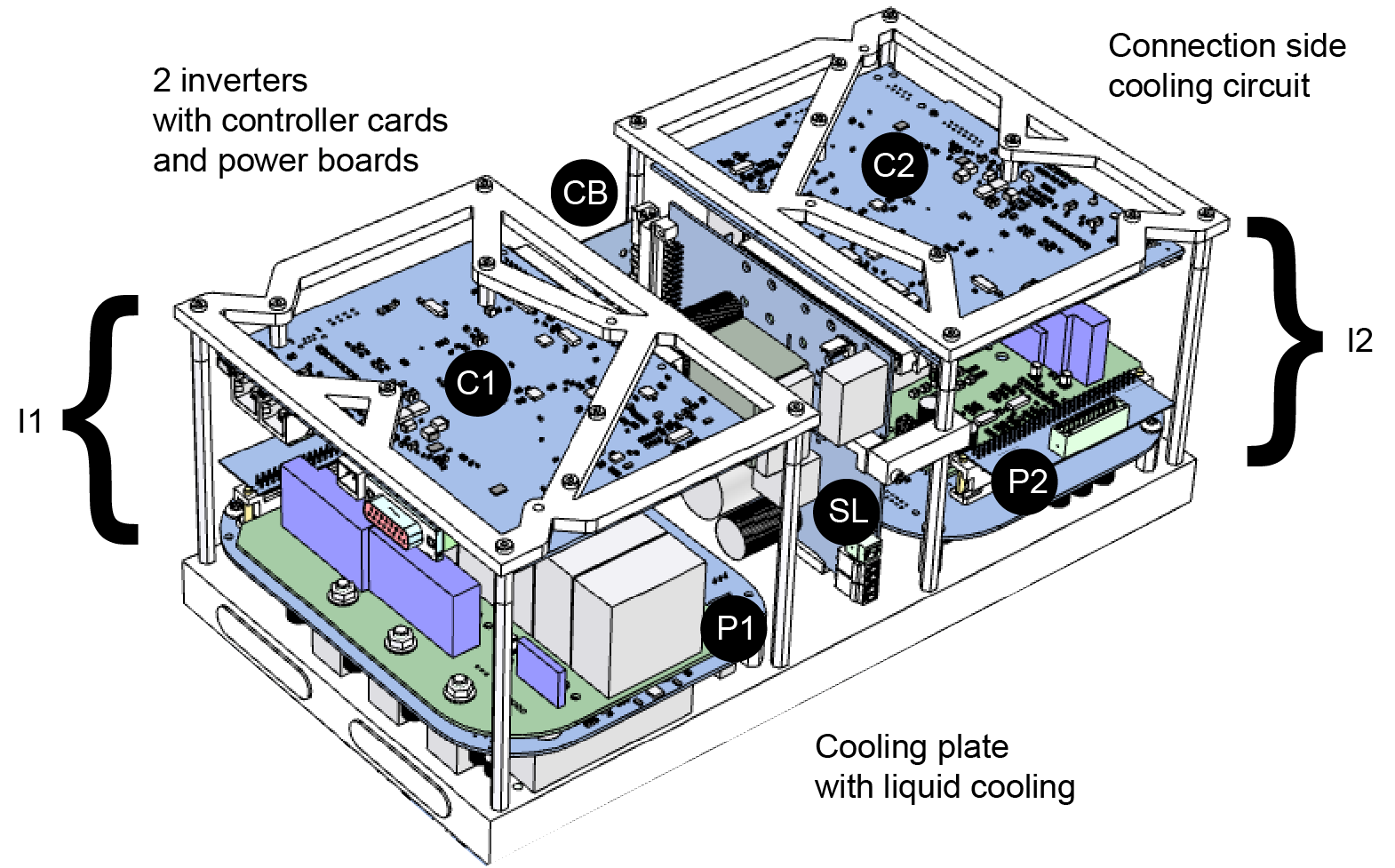

Inverter (contains power electronics and a controller card for a motor) |
|
P(1/2) |
- |
Power electronics for inverter I(1/2) |
|
C(1/2) |
- |
Controller card for inverter I(1/2) |
| SL | - |
Power supply and logic board for I1 and I2 |
| QB | - |
Transverse board, connects I1 with I2 |
