ID32768 'Nominal motor voltage'

Sphere of action:

DRIVE

Default value:

3500

Access:

READING / WRITING

Scale:

0.1

Temporarily changeable:

NO

Unit:

V

Data length:

2 byte

Min. value:

0.0 V

Signed:

NO

Max. value:

1000.0 V

Format:

DEC



List:

NO





ID32768 describes the motor voltage for the speed n ≤ nominal speed in the voltage / frequency control operating mode and is to be taken from the respective type plate or data sheet of the motor. The voltage / frequency control operating mode is activated in ID32953 'Encoder type'.



Note that the ramp times in ID32780 'Acceleration ramp', ID32781 'Deceleration ramp' and ID32782 'Deceleration ramp RF inactive' may not be less than the physically achievable speed ramps of the system.

Siehe ID32991 'U/f startup'.

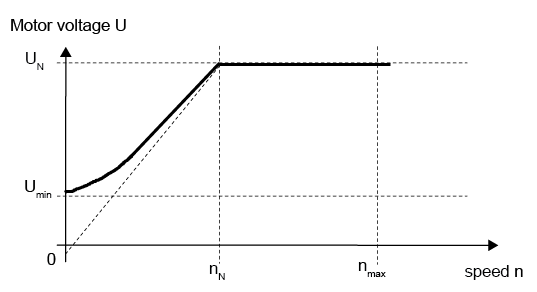

Depiction: U = f(n) in voltage / frequency control

UN:

ID32768 'Nominal motor voltage'

Umin:

ID32935 'Voltage standstill'

nN:

ID32772 'Nominal velocity'

nmax:

ID00113 'Maximum speed'
