Adapter settings

Start TwinCAT XAE (VS 2013)



Create a new project





Select the target system:



Add the EtherCAT Master functionality to the ‘Device’ icon

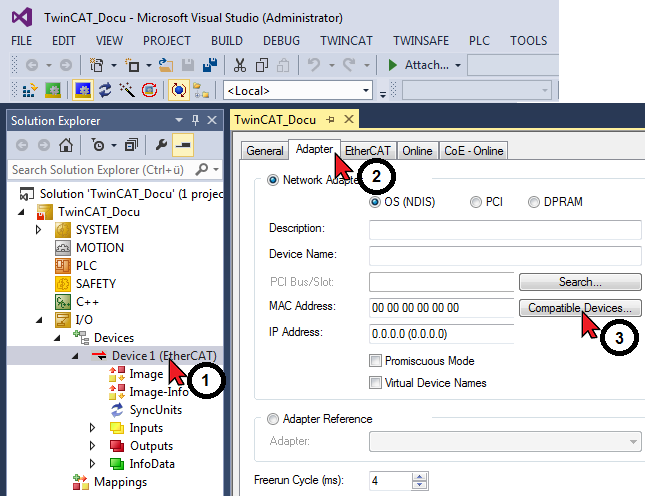

Configuration of the PC network card (one time)



The TwinCAT software system can be used on virtually all PC-based systems as a real-time control.



Requirement:

The TwinCAT driver for real-time Ethernet communication is installed.

The TwinCAT driver for real-time Ethernet only works with Ethernet cards with an Intel chip set.

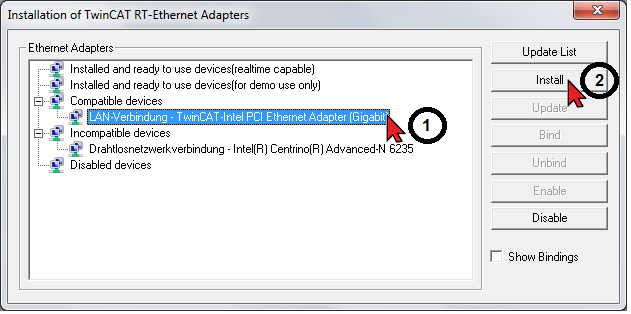

Install TwinCAT Intel PCI Ethernet adapter

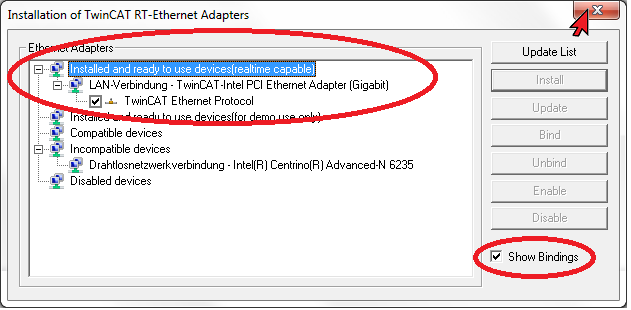

Feedback message: TwinCAT Intel PCI Ethernet adapter installed

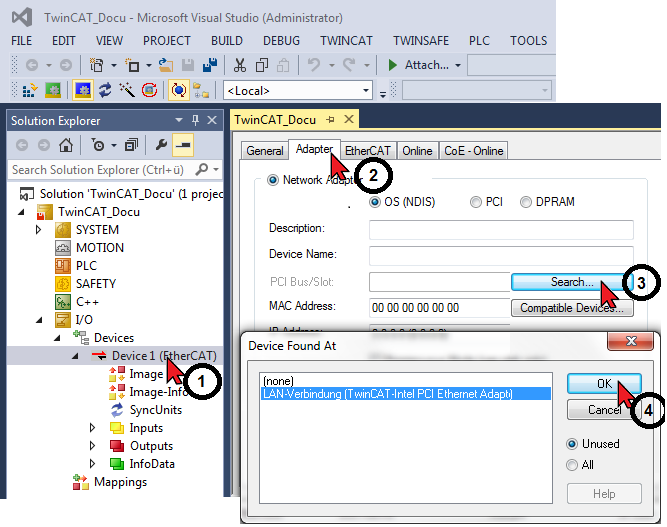

Activate EtherCAT adapter



Feedback message: adapter activated
