XYVA table

XY tables are based on the 'ST_PROF_XYVATAB' structure. They support the definition of a function y=f(x) based on 'uiNoElement' 5th order polynomials.

A pointer of the table structure references the dX, dY, dV, and dA values which describe the function y=f(x) section by section.

dX and dY describe the interpolation point of the function, dV describes the velocity (value of first derivation), and dA describes the acceleration (value of second derivation) in this point.

The table interpolation point structure 'stCam_A': ARRAY [0...3] OF SMC_CAMXYVA and the structure 'stCam': MC_CAM_REF are generated automatically based on the cam disk editor under CODESYS.



The 'CAMXYVA_TO_PROF' function block converts the CODESYS structures into the AMK structure 'ST_PROF_XYVATAB'. (



Tabelle 3: CAM_PROF: Table structure of the XYVA table

Header information:

  enType = PROF_XYVATAB

  uiNoElement


udMasterInc (not used)
Pointer to interpolation point table:

pstCamXYVA

Table structure of the interpolation point table

XYVA interpolation point table:

stCam[0].dX = 0


stCam[0].dY = 0


stCam[0].dV


stCam[0].dA


...


stCam[N].dX


stCam[N].dY


stCam[N].dV


stCam[N].dA

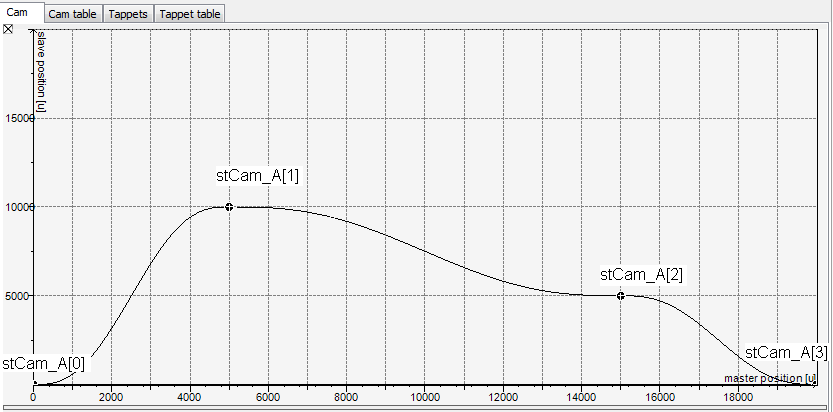

Abbildung 24: CAM_PROF: Principle of the function interpolator with XYVA tables


The figure shows the functional principle of the XYVA interpolator based on 5th order polynomials defined section by section.

The example includes N = 3 polynomials with 4 sampling points stCam_A[0] ... stCam_A[3].

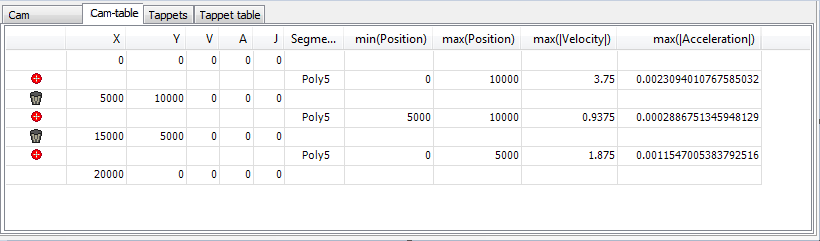

CODESYS structures 'stCAM' and 'stCAM_A'

stCAM: MC_CAM_REF

:=

(nElements = 4,
byType = 3,
xStart = 0.000000,
xEnd = 20000.000000,
nTappets = 0,
strCamName = "stCAM");

stCAM_A: ARRAY[0…3] OF SMC_CAMXYVA

:=

(dX = 0.000000, dY = 0.000000, dV = 0.000000, dA = 0.000000),

(dX = 5000.000000, dY = 10000.000000, dV = 0.000000, dA = 0.000000),

(dX = 15000.000000, dY = 5000.000000, dV = 0.000000, dA = 0.000000),

(dX = 20000.000000, dY = 0.000000, dV = 0.000000, dA = 0.000000),



Advantages of the XYVA table

Disadvantages of the XYVA table
